The Phoenix Animal
Carcass Incinerators use standard #2 diesel fuel.
When operated correctly
the Phoenix units do not emit odors into the air.
Models
If the units shown here do not meet the needs of your
application -- call us or check back. We are
developing additional models for the poultry industry -- and
additional sizes to meet your needs.
MODEL
DIMENSIONS
WEIGHT
CAPACITY

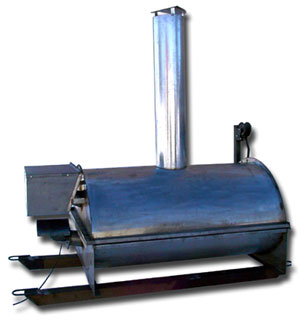

6045
60" X 45" X 22"
750#
500#
7248 - 2
72" X 48" X 30"
2000#
750#
8460
84" X 60" X 60"
2500#
1200#

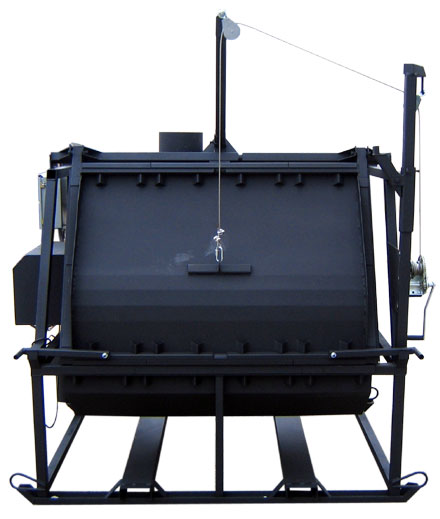

Model 6045-FL

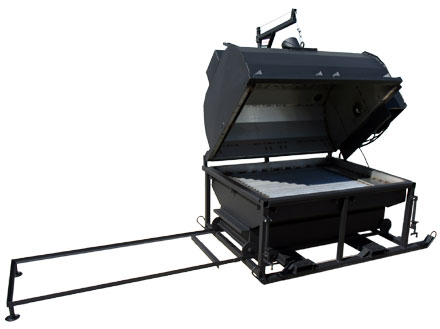

Model 6045-CS
Model 7248-2
Model 8460
CONSTRUCTION MATERIAL
10
GAUGE HIGH HEAT STAINLESS STEEL
12 GAUGE 2X2 SQUARE TUBE FRAME
STAINLESS STEEL CHIMNEY
STAINLESS STEEL DOWNDRAFT CAP
WARRANTY
ONE-YEAR WARRANTY FROM DATE OF PURCHASE ON
MATERIALS, INCLUDING BURNER, FAN, TIMER, CONTROLS
AND SHELL
.
INSTALLATION
SIEBRING MFG. RECOMMENDS THAT ALL PHOENIX
INCINERATORS BE INSTALLED OUTDOORS FOLLOWING
ALL LOCAL CODES, LAWS, AND ORDINANCES. CUSTOMER IS
